ND Series Controller

POSITION:HOME>PRODUCT>ND Series Controller

FarDriver Controller 72V ND72850 Controller

Author:Admin    Date:2022-10-15    View:2527

FarDriver Controller 72V ND72850 Peak 88V BLDC 450A 6000-8000W Electric Motorcycle Controller With Regenerative Braking Function

FarDriver controller 72V ND72850 is sine wave type controller, which is brushless DC controller with self-learning function.

FarDriver Controller 72V ND72850

One set including below kits

1.1pcs XND72850 sine wave motor controller

2.1pcs X Bluetooth adaptor


Key Features

1). All the raw materials are imported, using high-performance Moss tube

2).Withthe aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3).Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and Apple

7). With flux weakening function (The product does not contain magnetism)


Product Description

ND72850 is sine wave controller. Which is more cost effective with waterproofing grade IP67, suit for 6-8kw motors, the peak voltage for it is 88V.

It’s hall version (as default) which suit with hall motors.

It could also support encoders, please check with sales.

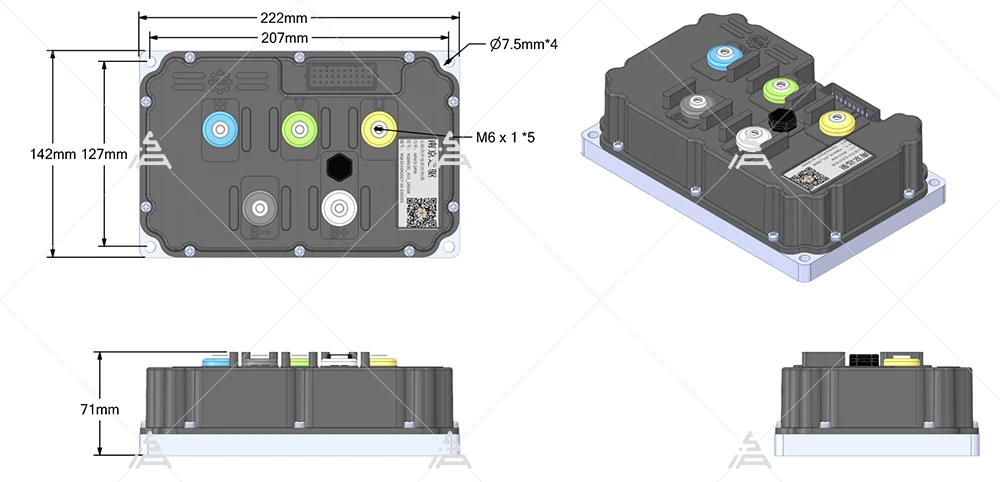

Drawing

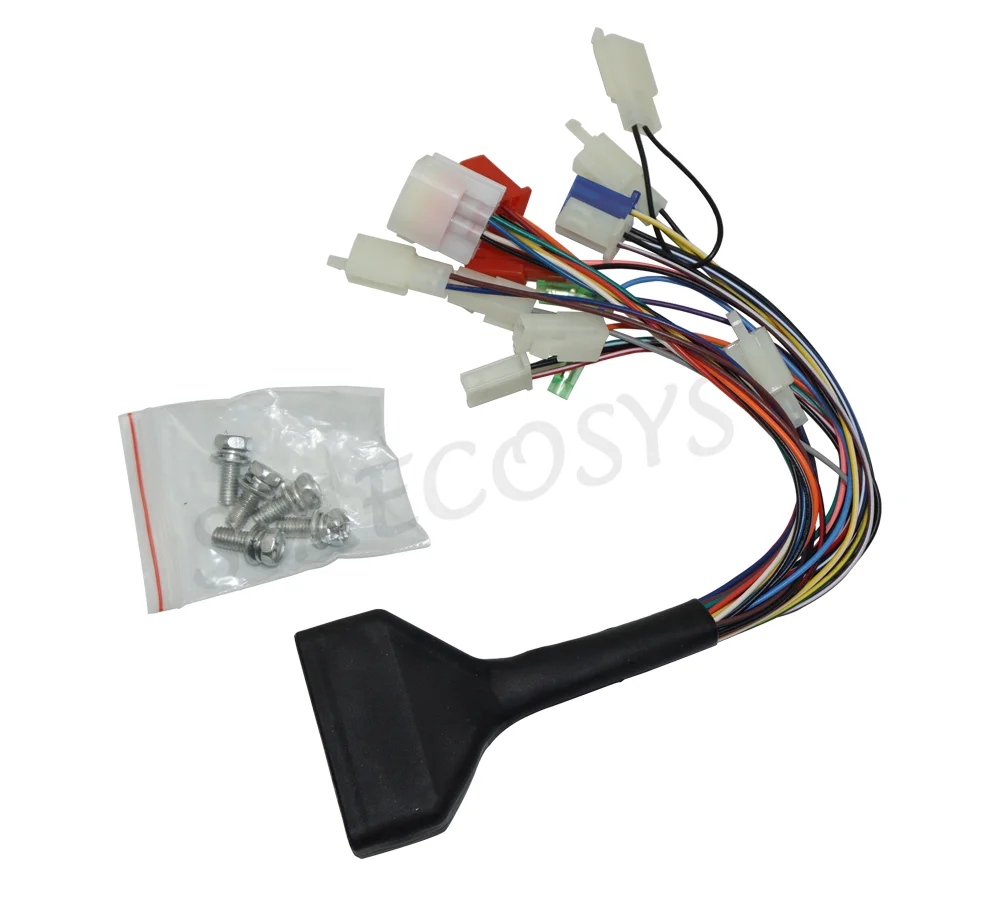

Adapter Cable



Bluetooth



Software interface(APP)



Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
