Fardriver 72360 Fardriver ND72360 ND84360 ND96360 Electric Motor Controller

Author:Admin    Date:2022-10-15    View:1490

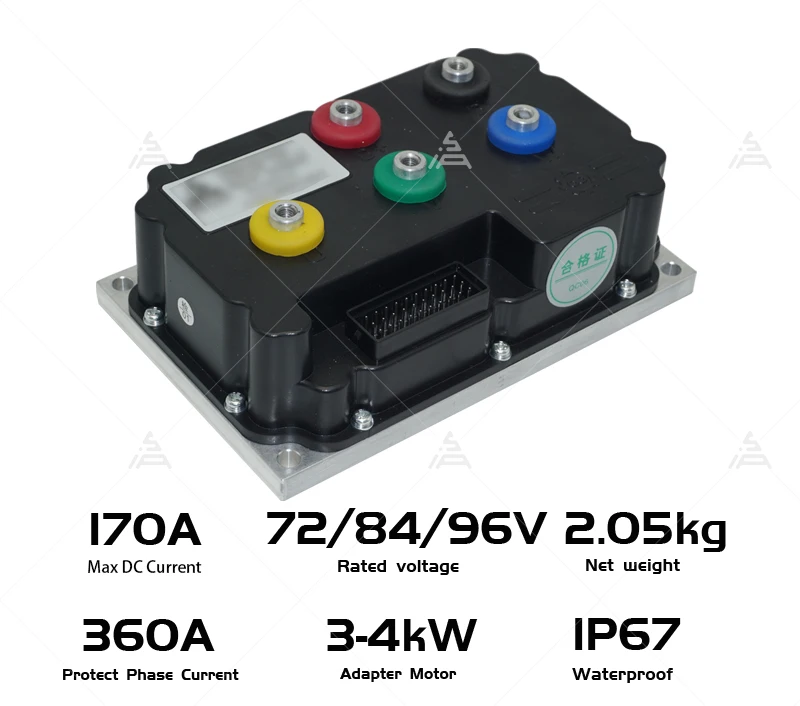

Fardriver 72360 Fardriver ND72360 ND84360 ND96360 Electric Motor Controller High Power 360A 3000-4000W BLDC Programmable Controller


FarDriver controller is sine wave type controller, which is brushless DC controllerwith self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

Pls note that the FarDriver controller defaults to the Hall state, which cannot match the speedometer in the one-line state, like the DKD speedometer.

fardriver 72360


One set including below kits

Combo1.

1. 1pcs X ND72360 sine wave controller

2. 1pcs X Bluetooth adaptor


Combo2.

1. 1pcs X ND84360 sine wave controller

2. 1pcs X Bluetooth adaptor


Combo3.

1. 1pcs X ND96360 sine wave controller

2. 1pcs X Bluetooth adaptor


Key Features

1). All the raw materials are imported, using high-performance Moss tube

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and Apple

7). With flux weakening function.(The product does not contain magnetism)


Product Description

ND72360 ,ND84360 and ND96360 are sine wave controller with waterproofing grade IP67, suit for 6-8kw motors.

For ND72360,  the peak voltage is 88V

For ND84360,  the peak voltage is 100V

For ND96360,  the peak voltage is 115V and the mosfet inside more resistant to temperature than ND72360and ND84360.

It’s hall version (as default) which suit with hall motors.

It could also support encoders, please check with sales.


Drawing

Adapter Cable


Bluetooth


Software interface(APP)


Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
